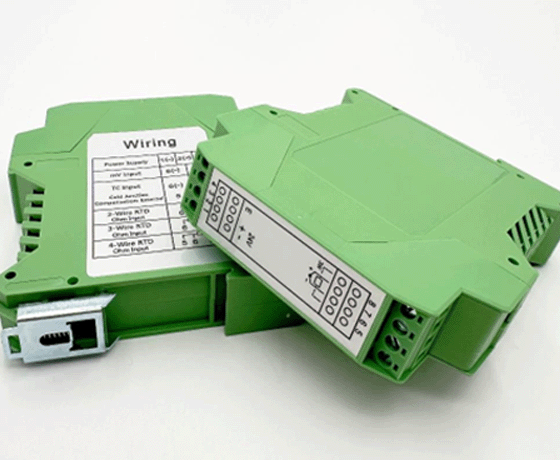

Temperature transmitter board H649WD 2025v1

Description :

H649WD series of isolated temperature transmitter boards converts the ThermoCouple (TC) or Resistance Temperature Detector (RTD) signals from the field, after digital linearization processing, into a temperature-linear 4-20mA current isolated output. It supports Pt50, Pt100, Pt500, Pt1000, and types E, J, B, K, N, R, S, T of thermocouples
For RTD connections, two-wire, three-wire, or four-wire configurations are available. When connecting thermocouples, the built-in cold junction compensation function can be activated. It also supports the measurement of millivolt and resistance signals with an isolation voltage of DC1000V.

Get Price Contact

Parameters

Technical Specifications

Power Supply: DC10-32V, input from the “power terminal”;

Output: 4-20mA DC with HART communication;

Load Resistance: ≤(U-10)/0.22 ohms;

Output Accuracy: 0.2%, with an additional cold junction compensation error of 1°C for thermocouples;

Continuous Operating Temperature: -40 to +85°C;

Relative Humidity: 10% to 90% RH;

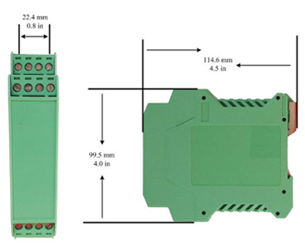

Dimensions: Diameter Φ = 44mm, mounting hole spacing D = 33mm;

Weight: approximately 35g.

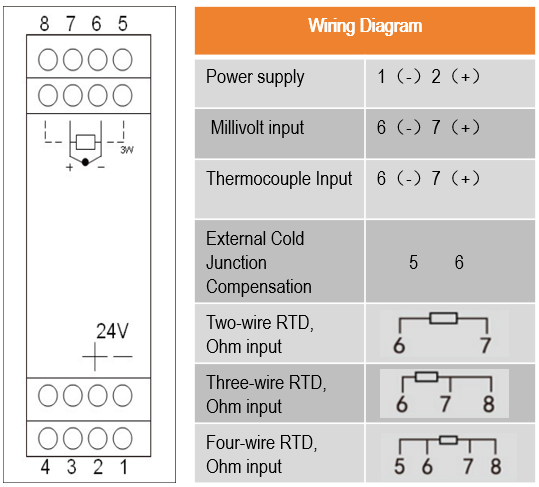

Wiring Diagram

Parameters

Type		Measurement scope	Minimum measurement scope	Conversion accuracy
Thermo Couple(TC)	T	-200～400℃	25℃	±0.4℃/0.2％
	E	-200～1000℃	25℃	±0.4℃/0.2％
	J	– 210～1200℃	25℃	±0.4℃/0.2％
	K	-200～1372℃	25℃	±0.4℃/0.2％
	N	-200～1300℃	25℃	±0.4℃/0.2％
	R	0～1768℃	100℃	±0.8℃/0.2％
	S	0～1768℃	100℃	±0.8℃/0.2％
	B	150～1820℃	100℃	±1.0℃/0.2％
		-120～120mV	10mV	±10μV /0.2％
		-1000～1000mV	50mV	±100μV /0.2％
Resistance Temperature Detector（RTD）	Pt50	-200～850℃	10℃	±0.15℃/0.2％
	Pt100	-200～850℃	10℃	±0.15℃/0.2％
	Pt500	-200～850℃	10℃	±0.1℃/0.2％
	Pt1000	-200～850℃	10℃	±0.1℃/0.2％
		0～500 Ω	100Ω	±0.2 Ω/0.2％
		0～4500 Ω	100Ω	±1.0 Ω/0.2％

Ordering Information

Product Type		Part No.	Description
Temperature Transmitter Board	DVRT	D148D	Economical Temperature Transmitter Board; PT100 three -wire; DVRT communication protocol; Junction box installation.
	DVRT	D248WD	Isolated Temperature Transmitter Board; RTD + TC various sensor type inputs; DVRT communication protocol, junction box installation.
	HART	H648WD	Isolated Temperature Transmitter Board; RTD + TC various sensors input; HART communication protocol; junction box installation.
		H649WD	Isolated Temperature Transmitter Board; RTD + TC various sensors input; HART communication protocol; DN rail installation.
		H3051WD	Isolated Temperature Transmitter Board; RTD + TC various sensors input; HART communication protocol; 3051 shell with a display screen.
