What’s a Level Control Board and Why’s It a Big Deal?

What Is a Level Control Board and Why Does It Matter?

A level control board for transmitter systems is the main brain that makes sense of sensor data and keeps level monitoring spot-on in industrial setups. Whether it’s part of ultrasonic, magnetostrictive, or capacitive level transmitters, the board takes sensor inputs and turns them into useful signals for control systems.

It’s a big deal because it connects the physical sensor to the digital or analog outputs automation systems need. Without a solid control board, even top-tier level sensors might spit out wonky or shaky data.

Key Jobs of a Level Control Board in Transmitter Systems

Making Sense of Signals and Data

The board’s main gig is turning raw sensor inputs into something usable. For example, capacitive sensors put out analog signals based on capacitance changes. The board flips these into digital readings, applies calibration tweaks, and pumps out standardized data.

Keeping Power Steady and Circuits Safe

The board also keeps power flowing smoothly to all parts while shielding delicate circuits from voltage spikes or electromagnetic noise. Features like isolation voltage (up to 1000VDC in the H509) are built into modern boards to boost safety and reliability.

Talking to External Systems (PLC, SCADA, etc.)

The control board acts as a communication hub, linking up smoothly with Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and Supervisory Control and Data Acquisition (SCADA) setups. It handles protocol translation, making sure sensor data plays nice with standards like 4-20mA, HART, RS485, or Modbus.

How Does the Control Board Affect Level Switch Accuracy?

Can the Board Make Switching More Precise?

You bet. By using slick digital processing tricks like Direct Digital Synthesis (DDS), control boards sharpen the accuracy of level switches. Achieve high precision through Direct Digital Synthesis (DDS) technology. This means even tiny changes in fluid levels get picked up with confidence, cutting down on false alarms or missed detections.

Factors That Mess with Switch Response Time and Reliability

Calibrating Sensors via the Control Board

Calibration has a big say in how well a transmitter reacts to level changes. The calibration points can be from 2 to 15. This flexibility lets you tweak response profiles for different needs, helping performance in changing conditions.

Filtering Out Noise and Cleaning Up Signals

Modern boards use filtering tricks to block out electrical noise from nearby gear. These filters are super important in places like chemical plants or offshore rigs where electromagnetic interference is a thing.

Our automated production and testing systems, combined with electronic barcode tracking, guarantee reliable performance for every board—even in large batches.

How Control Boards Boost Transmitter Performance

How Do Control Boards Amp Up Transmitter Features?

Control boards take transmitters beyond just spitting out signals. For example:

• Auto diagnostics
• Alarm signaling
• Real-time output tweaks
• Redundancy checks

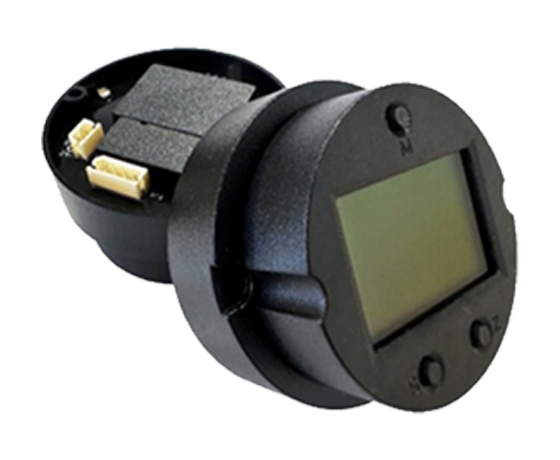

Equipped with a powerful fault self-diagnosis system, the H770 series can detect various faults in real-time, such as sensor failures, signal abnormalities, and power supply problems.

Keeping Level Measurements Stable and Sensitive

Handling Temperature Swings

Level readings can go off if temperatures shift and there’s no fix. Built-in sound speed temperature compensation to ensure accuracy across different temperatures. This feature is baked into ultrasonic boards like the H760 to keep accuracy steady no matter the environment.

Processing Data on the Fly

Speed matters in level monitoring. Top-notch control boards handle incoming data quick to update displays or send control signals without lag. Simultaneously shows liquid level, temperature, signal status, and more.

Hooking Up with Industrial Automation Systems

How Do Level Transmitters Chat with Other Gear?

Level transmitters need to work with both old-school and modern automation systems. This means supporting a bunch of communication protocols and output types.

With a variety of output signal options, including 4 – 20mA current signals with or without HART communication, and dual current output configurations, the H770 series from ICwalk can be easily integrated into different control systems.

The Board’s Role in Protocol Support (e.g., 4-20mA, HART)

Handling Analog vs. Digital Outputs

Control boards juggle both analog (4-20mA) and digital signals (HART, RS485), often in the same device. This dual setup makes them fit right into mixed systems where older analog gear meets newer digital controls.

Data Logging and Diagnostics Support

Lots of modern boards have built-in memory for tracking performance stats and errors. It possesses a complete data backup and recovery function. This cuts downtime by making troubleshooting and recovery from setup errors a breeze.

Common Headaches and Fixes

What Are Typical Problems with Level Control Boards?

Users might run into issues like jumpy readings, slow responses, or communication glitches. These can come from bad wiring, power hiccups, or outdated firmware.

Figuring Out Why Level Switches or Transmitters Are Acting Up

Dealing with Electrical Interference and Shielding Issues

Noise from motors or welding gear can mess with board performance. Proper shielding and grounding are key to keeping things smooth.

Fixing Firmware or Setup Goofs

Wrong settings during calibration or software bugs can tank performance. If the damping value entered is “05678”, it will automatically perform to restore factory settings. This built-in reset feature is a quick fix for software hiccups.

Meet ICwalk’s Level Transmitter Board Solutions

Who’s ICwalk and What Do They Bring?

We at ICwalk are all about high-performance level transmitter boards built for industrial use. Our lineup includes ultrasonic, magnetostrictive, and capacitive boards designed for reliability and precision.

Features of ICwalk’s Level Transmitter Boards That Juice Up System Performance

Modular Design for Custom Needs

We’ve delivered 200+ customized solutions for manufacturers, supporting a wide range of sensors (pressure, temperature, level, flow).

Super Precise Signal Conversion

ICwalk boards are trusted by over 800 instrument makers in China, with tons of real-world testing. Our boards use advanced signal processing tricks like DDS for crazy accurate measurements.

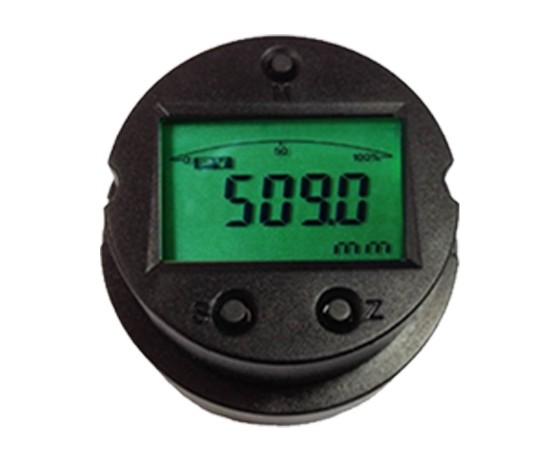

The H509 currently employs a capacitive measurement structure, with a measurement range of 50PF to 5000PF and a resolution of 0.002PF. This level of granularity would not be possible without sophisticated signal conversion algorithms embedded in the control board.

Works with All Kinds of Sensors

Our boards play nice with multiple sensor types, including capacitive probes, magnetostrictive rods, and ultrasonic transducers.

Built-in Diagnostic Tools for Easy Maintenance

We bake self-diagnostic tools into our boards to catch issues in real time—saving maintenance time and boosting system uptime. Comprehensive fault diagnosis and alarm functions ensure safety during critical operations.

FAQ

Q: What’s the job of a level control board in a transmitter system?
A: It turns raw sensor signals into usable data while handling power regulation, calibration, diagnostics, and communication with external systems.

Q: Can a busted control board mess up level readings?
A: Yup. A faulty board might misread sensor inputs or fail to talk properly with PLCs or SCADA systems, leading to wrong measurements.

Q: How do I pick the right level control board for my setup?
A: Think about sensor compatibility (ultrasonic, capacitive, magnetostrictive), needed output signals (4-20mA, HART), operating conditions (temperature range), and diagnostic features. For customizable options tailored to your needs, we at ICwalk offer modular solutions with proven reliability across diverse industries.
