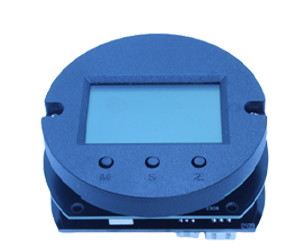

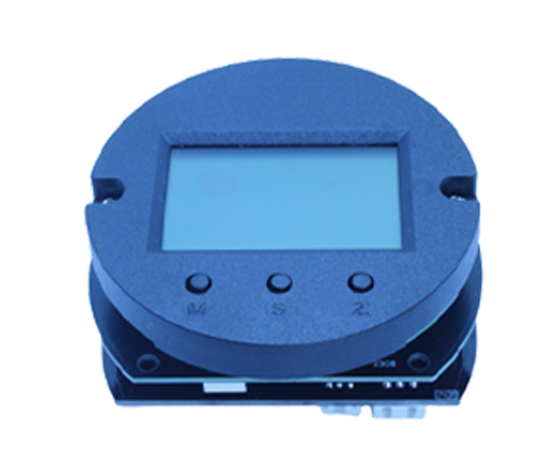

Ultrasonic Open Channel Flow Transmitter Board
Description :
H760RO is a highly advanced and reliable ultrasonic open channel flow transmitter board designed for flowmeter to meet the diverse needs of flow measurement in various industrial and environmental applications.
Open channel flowmeter is widely used in water plant, sewage treatment plant, chemical reagent plant, dye plant, pulp plant and other factories level measurement engineering. It is one of the main liquid level measurement methods in modern intelligent automation industry.
The composition of sewage is complex and corrosive, and the liquid surface is easy to form floating objects. Therefore, the required level sensor is sensitive and reliable. Ultrasonic wave has the characteristics of strong signal penetration and sensitive response, which is the recommended choice for sewage level measurement.
Open channel flowmeter is widely used in water plant, sewage treatment plant, chemical reagent plant, dye plant, pulp plant and other factories level measurement engineering. It is one of the main liquid level measurement methods in modern intelligent automation industry.
The composition of sewage is complex and corrosive, and the liquid surface is easy to form floating objects. Therefore, the required level sensor is sensitive and reliable. Ultrasonic wave has the characteristics of strong signal penetration and sensitive response, which is the recommended choice for sewage level measurement.
Parameters
Main Features
- Factory-set at 100KHz±20KHz for open channel 485 comm., adjustable via external RC mod. & software to support 20 – 125KHz sensors, ensuring adaptability.
- Multiple comm. options like two-wire HART or RS485, available in split/int. configs. & PA variants, enhancing network compatibility.
- Three-button on-site debug. interface for easy zero/range/damping adjust. & data recovery, facilitating setup & maint.
- Backlit dot-matrix LCD shows liquid level, temp., & signal status, enabling real-time monit. & quick decisions.
- With auto false echo suppression, performs well in complex env., filtering false echoes for accurate results & wide adaptability.
- Boasts good universality, high acc., stable perf., & fast resp., meeting strict industrial flow meas. reqs.
- New sensor wire break detection. func. boosts system safety & reliab., detecting & alerting wire issues to prevent errors & failures.
Technical Specifications
| Items | Specifications |
| Power Supply | 6 – 32V DC |
| Communication Protocol | RS485 + Modbus RTU |
| Output Current | 4 – 20 mA |
| Acquisition Resolution | 1 mm at 100 kHz |
| Dimensions | Diameter of 70 mm, Hole Spacing of 62 mm |
Ordering information
| Product Type | Part No. | Description |
| Ultrasonic Open Channel Flow Transmitter Board | H760RO | Ultrasonic Level Transmitter Board;
RS485 communication protocol; 4-20mA output; Display screen; with open-channel option. |
